MIDI CONTROLLERS - COMPACT - BEAUTIFUL - HIGH QUALITY

Custom built

Show controller GT1


--------------------------------------------------

Moonbootica controller MB1


Ask for any custom built
midi controllers.


---------------------------------------------------

Collaborations


Total control of Traktor Pro

with


Versus




4TrackTrigger


4MidiLoop



Designed and produced in

collaboration with

Glanzmann Digital DJ Solutions


Distributed by Glanzmann

---------------------------------------------------


Special controller for

VJ-software modul8


micromodul8




Designed in collaboration

with GarageCube


Distributed by GarageCube


NEW MODULE - controller system

Mix controller MX12
12 faders (60mm), 26 buttons, 24 pots, 1 encoder, 4-digit-display

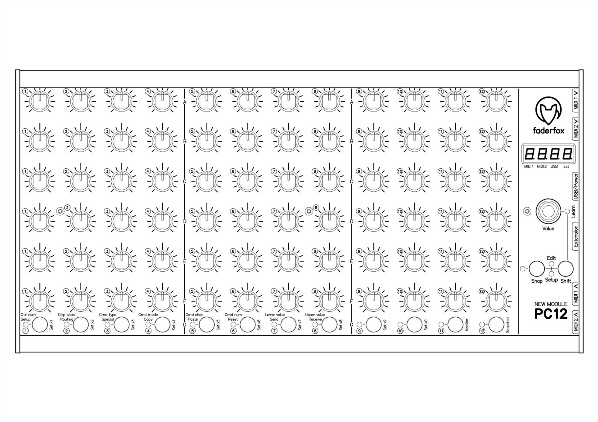

Pot controller PC12
72 pots, 14 buttons, 1 encoder, 4-digit-display

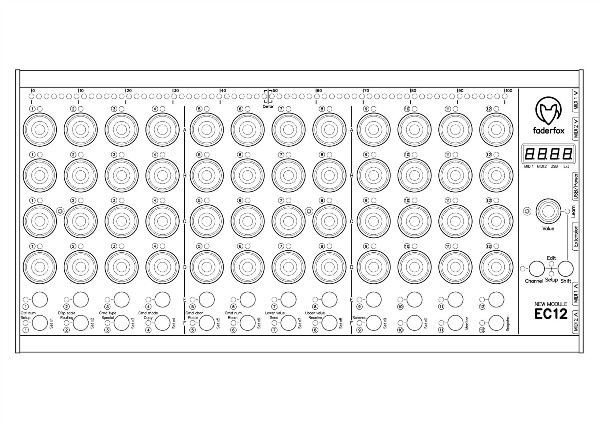

 Encoder controller EC12
49 encoder, 26 buttons, 64-segment-led-bar, 4-digit-display

Features

  • Universal controller for all kinds of midi controllable hard- and software


  • same size as the ELEKTRON devices like ANALOG RYTM, OCTATRACK or ANALOG FOUR

  • first 3 devices MX12, PC12 and EC12 with 12 track design are optimized for ANALOG RYTM
    (suitable with the other ELEKTRONs too)

  • all connections on the right side so it's possible to arrange devices close behind one another


  • 4 MIDI ports (DIN sockets) to expand your ELEKTRON(s) perfectly


  • USB port for control of DAW or other software on your computer


  • USB bus powering (external USB power adaptor possible)


  • USB class compliant / no driver necessary

  • Extension port (RJ45) to integrate a second NEW MODULE in your system
    (power and bidirectional data)


  • various MIDI routing and merge options


  • fully programmable on the devices (channel, type, number, mode and much more)


  • Advanced programming functions like copy, paste, duplicate and channel sets

  • 4-digit-display to show pot / encoder values and programming data


  • 14 bit high resolution encoder mode for sensitive parameters


  • Programmable value ranges with min/max values


  • Data feedback for all controls


  • 50 setups with backup/restore function contain all controller settings


  • direct access to 10 setups by shift function


  • switchable SNAP function on MX12 and PC12 to avoid parameter jumps


  • preconfigured for ANALOG RYTM and ABLETON LIVE (script)


  • Fast control assign by incoming midi commands like control change, pitch bend, program change
    (LEARN function) one command can assign 12 control at same time


  • different schemes (rows, blocks) and MIDI channel switching on EC12
    for multiple use of all controls


  • high resolution LED bar (64 segment) on EC12 to show the encoder values


  • Upgradable firmware by simple Sysex-dump


  • solid design in a black metal case


  • all accessories of ELEKTRON devices fit to NEW MODULE (bag, dust cover)


  • planned price range 330 (PC12)...420 (EC12) Euro (excl. VAT)


Let me know your thougths about this new system.

Which device(s) you would prefer to order ?

I think I will start with the two most desired devices.

Prototypes will come asap...maybe first lot as KICKSTARTER.

Please send an email to info(at)faderfox.de
